| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN16 |
|---|
2-pc GG25 PN16 cast iron flanged ball valve
Specifications
1.Production Size:2"~10".DN50~DN250
2.Pressure:PN16
Cast iron flanged ball valve standard
1.Design Standard:DIN 3357,EN12516
2.Face to Face:DIN 3202,EN558-1,DN15-DN150(F4),DN200(F5)
3.Flange Standard:DIN2533,EN1092-2
4.Testing Standard:EN12266,DIN3230,ISO5208
Cast iron flanged ball valve main material of parts:
1.Body:GG25,GGG40
2.Bonnet:GG25,GGG40
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Ball:SS304,SS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:ASTM A536 65-45-12
Pls note:
Our factory manufacture various types of valves, if any inquiry for ball valves, pls don’t hesitate to contact Sophia via Email:sophiavalve(at)hbpvpt.com

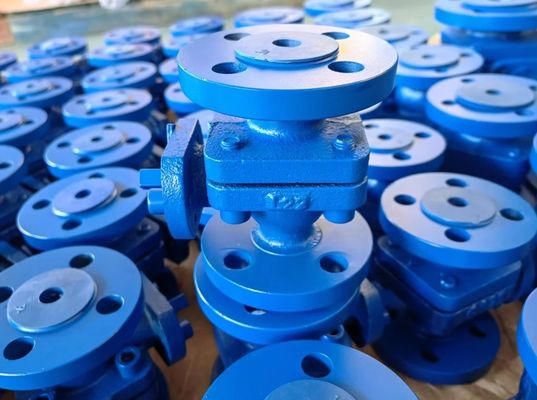

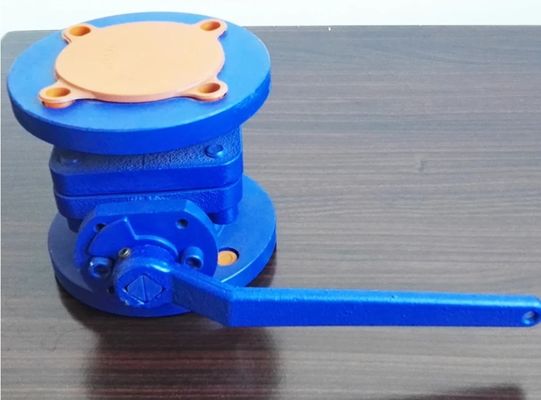

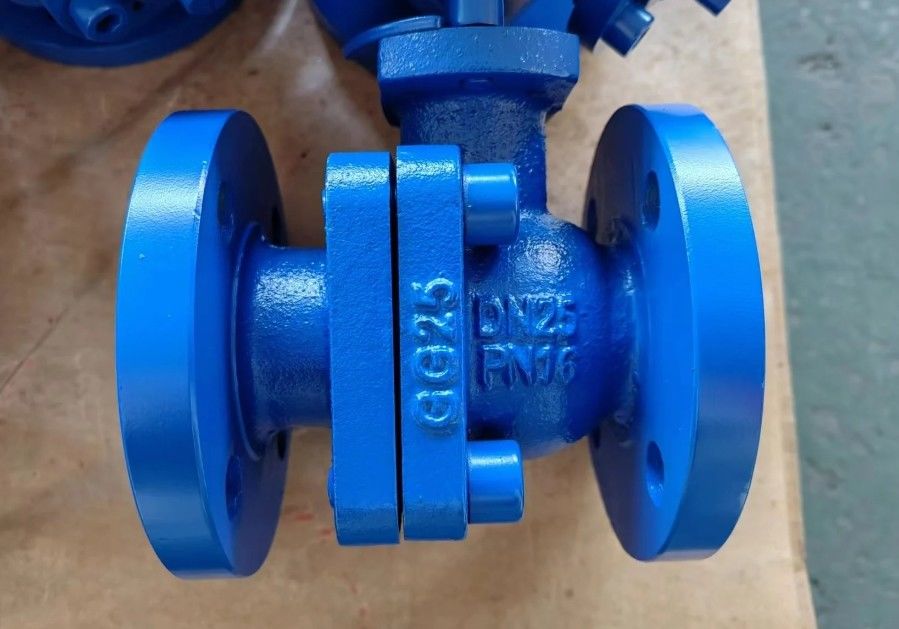

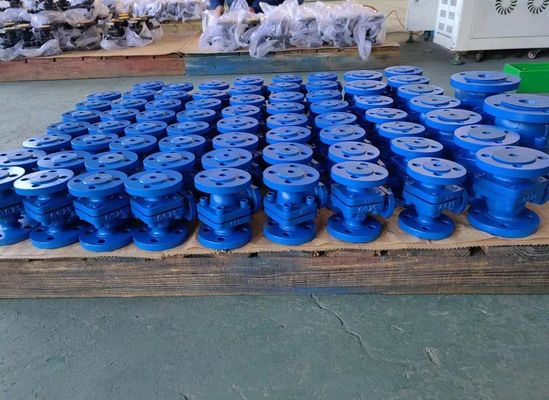

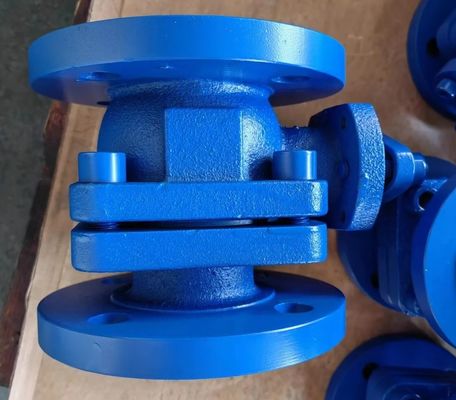

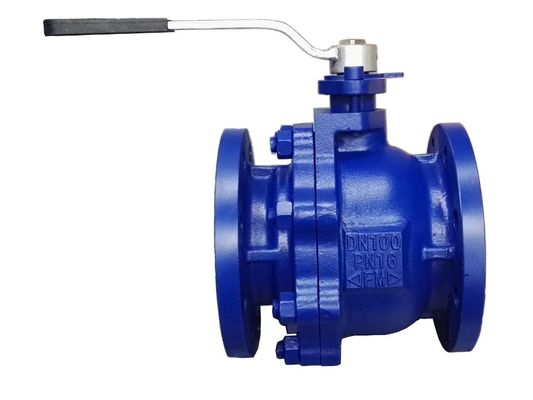

Product show
