| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | ASTM A351 CF8 |
|---|
ASTM A351 CF8 ANSI SS FLANGED ball valve
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:150LB,300LB,600LB,900LB
Stainless Steel Ball Valve standard
1.Design Standard:ANSI 608
2.Face to Face:ASME B16.10
3.Flange Standard:ASME B16.10
4.Testing Standard:API 598
Stainless Steel Ball Valve main material of parts:
1.Body:CF3,CF3M,CF8,CF8M
2.Bonnet:CF3,CF3M,CF8,CF8M
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Ball:CF3,CF3M,CF8,CF8M
5.Packing:PTFE
6.Seat:PTFE,RPTFE
7.Washer:PTFE
8.Handle:ASTM A536 65-45-12,A351 CF8,A351 CF8M

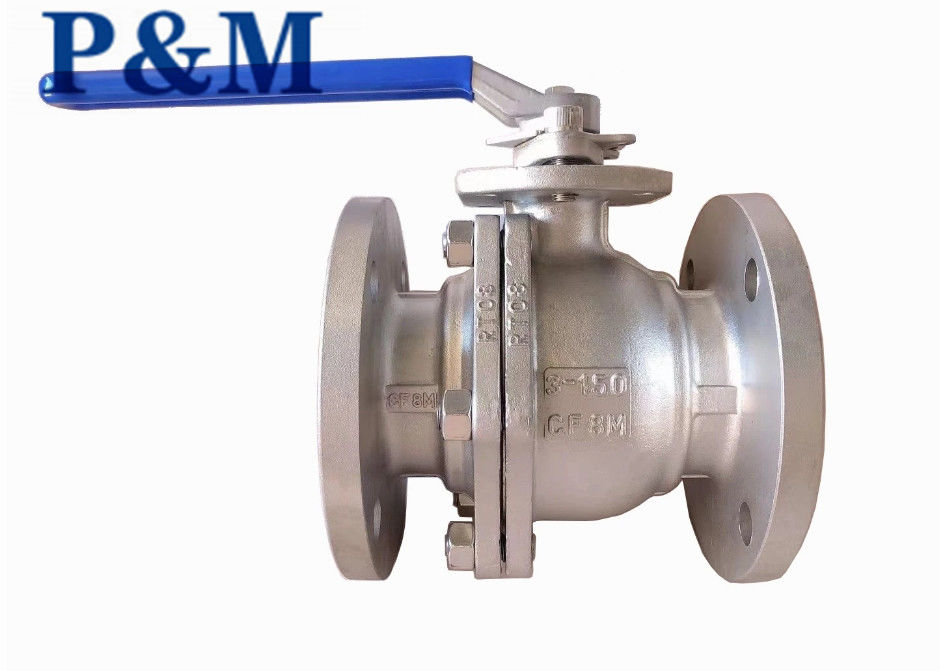

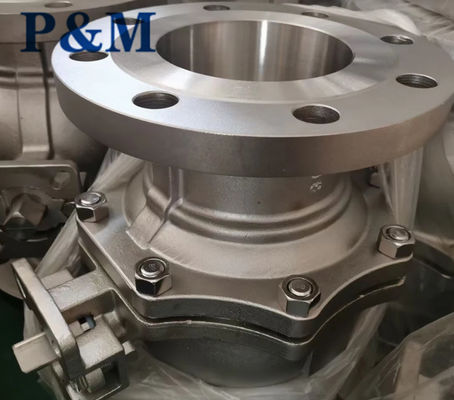

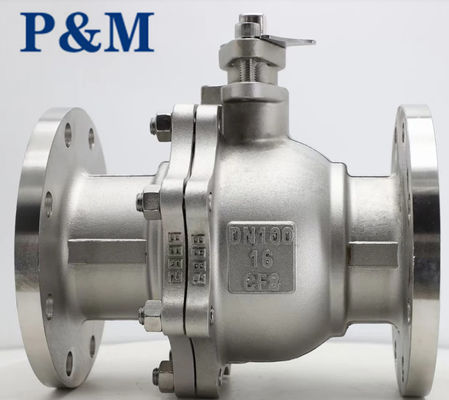

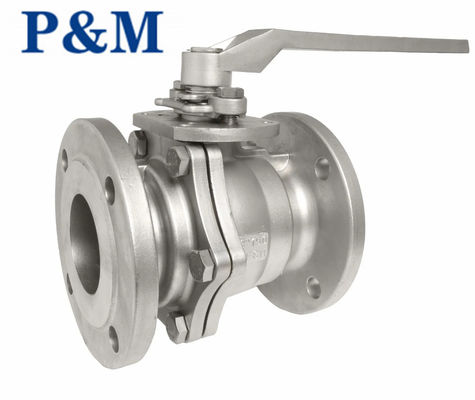

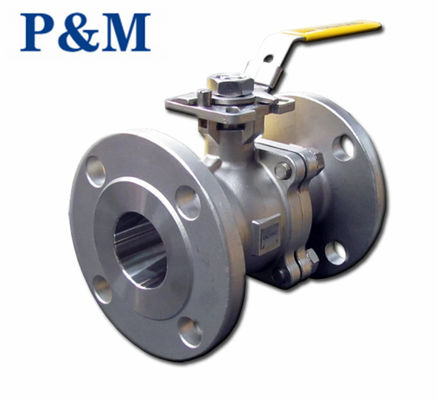

Product show
