| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | Class150 |
|---|
class150 WCB cast steel ANSI globe valve
Specifications
1.Production Size:1/2"~12".DN15~DN300
2.Pressure:150LB,300LB,600LB,900LB
Standard:
1.Design Standard:API600,API6D,BS1873
2.Face to Face:ASME B16.34
3.Flange Standard:ASME B16.5
4.Testing Standard:API 598
Material of parts:
1.Body:ASTM A216 WCB
2.Bonnet:ASTM A216 WCB
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Hand wheel:ASTM A536 65-45-12
8.Bonnet bolt:ASTM A193 B7
9.Bonnet nut:ASTM A194 2H
10.Packing:Graphite

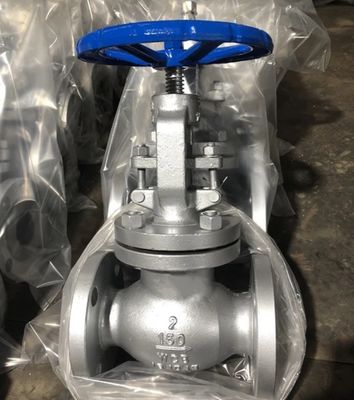

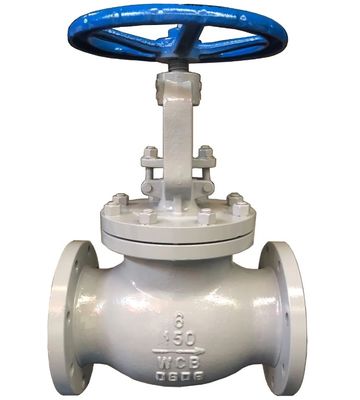

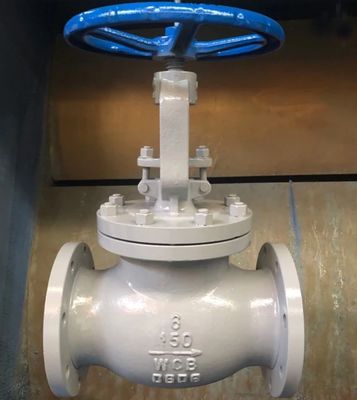

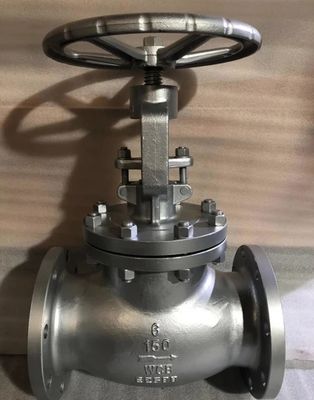

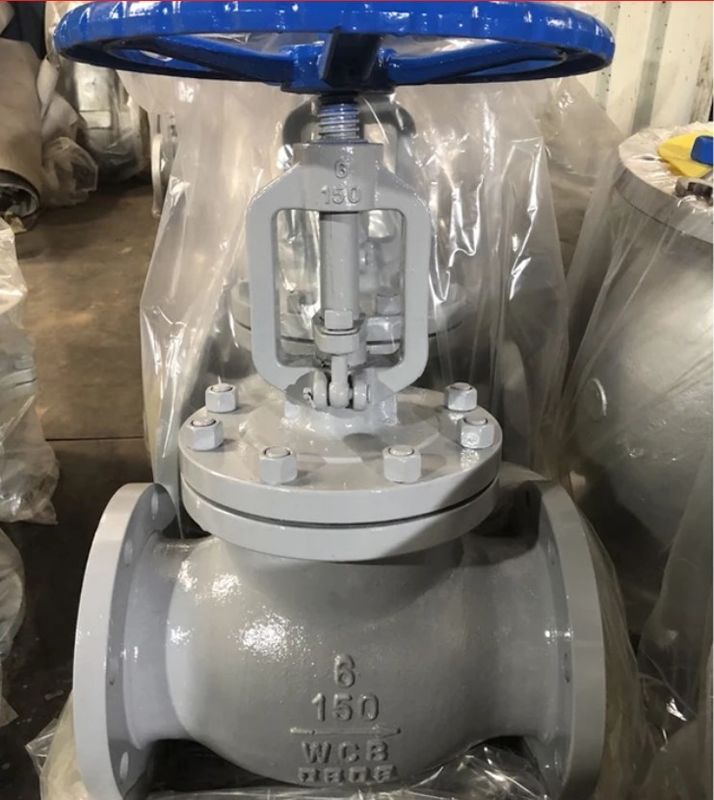

Product show
