2-PC cast iron flanged ball valve with DIN standard

2-PC cast iron flanged ball valve with DIN standard

Specifications

DIN standard ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.

2-PC cast iron flanged ball valve with DIN standard range:

1.Production Size:2"~10".DN50~DN250

2.Pressure:PN16

2-PC cast iron flanged ball valve with DIN standard standard

1.Design Standard:DIN 3357,EN12516

2.Face to Face:DIN 3202,EN558-1,DN15-DN150(F4),DN200(F5)

3.Flange Standard:DIN2533,EN1092-2

4.Testing Standard:EN12266,DIN3230,ISO5208

2-PC cast iron flanged ball valve with DIN standard main material of parts:

1.Body:GG25,GGG40

2.Bonnet:GG25,GGG40

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Ball:SS304,SS316

5.Gasket:PTFE

6.Seat:PTFE,RPTFE

7.Stem Packing:PTFE

8.Handle:ASTM A536 65-45-12

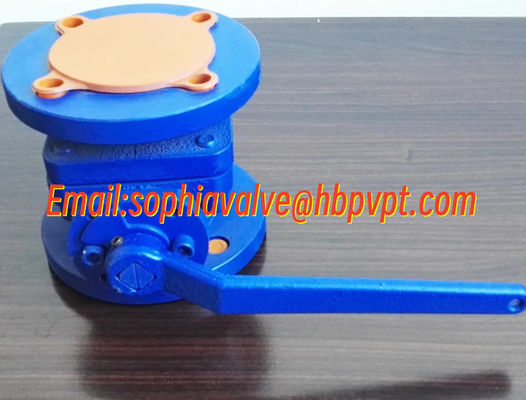

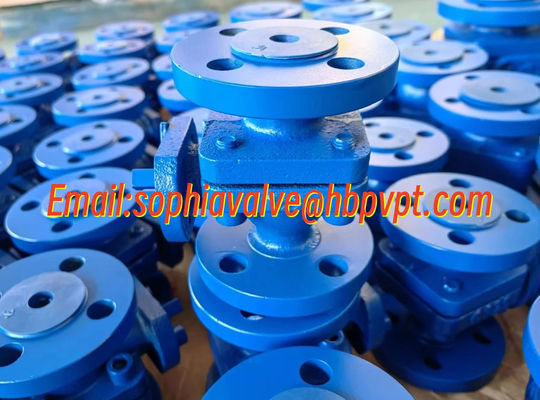

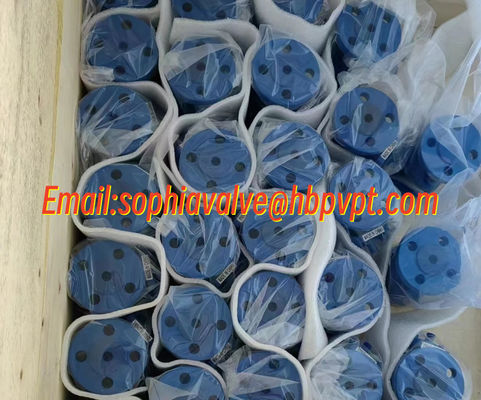

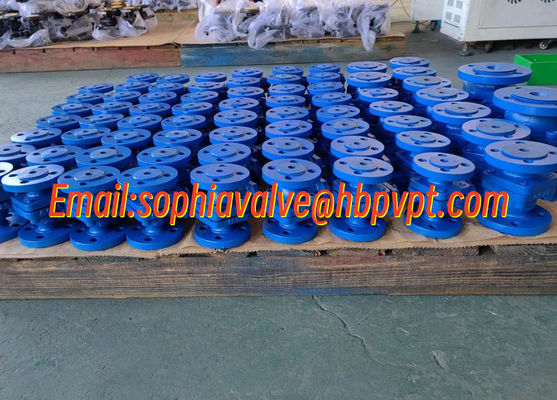

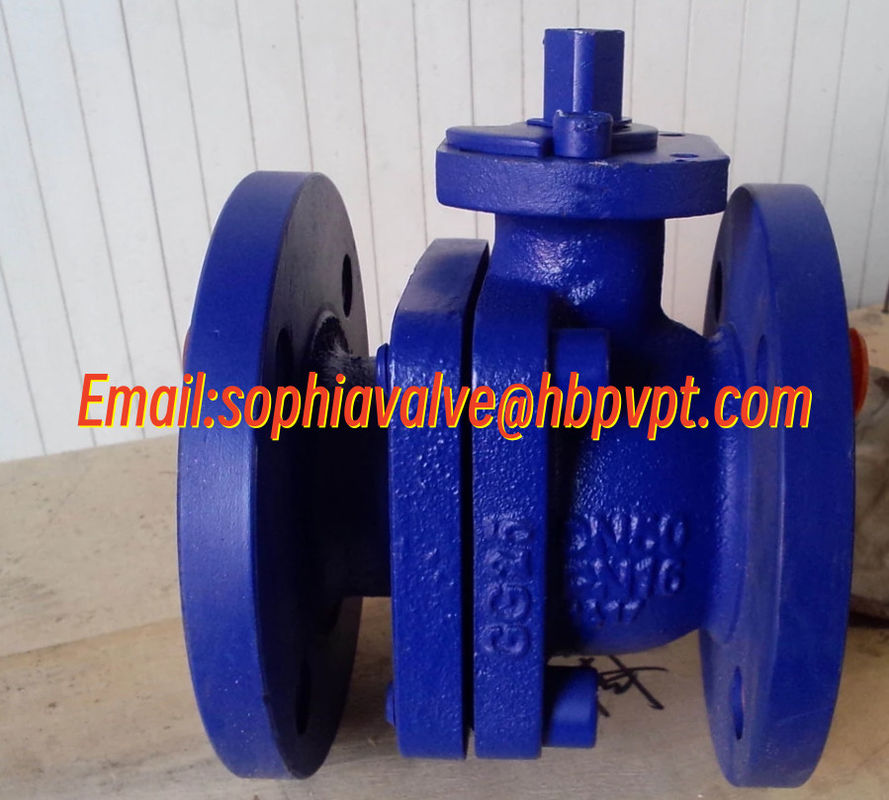

Product show
